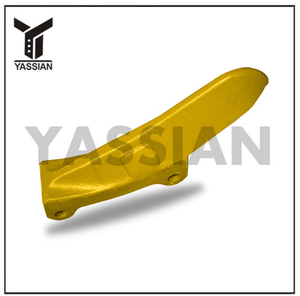

Caterpillar Style Ripper Guard 132-4716EXT

Caterpillar Style Ripper Guard 132-4716EXT, Extended Shank Protector, Bolt-on Sidebar Protector Extended Guard, Bucket GET Caterpillar Style Ripper Guard takes 2 – 6Y3909 pins and 2 – 8E4743 retainers, Caterpillar Ripper Protectors FOR construction equipment excavator, Cat Guards & Protectors Spare Parts China Supplier

Availability:

Our Advantage

Affordable price                                                            ☑ Customized design is Available                     ☑ T/T, L/C or other payment accepted

☑ Fast shipping, Worldwide delivery                               ☑ Quality guaranteed                                         ☑ Bulk discounts for larger orders

Product Description

Caterpillar Style Ripper Guard 132-4716EXT Feature:
Part No.:  132-4716
Replacement Brand: Caterpillar
Material ductile iron, gray iron, carbon steel, low alloy steel
Surface hardness:470-540MM HRC
Style: GUARDS & PROTECTORS (Ripper Protection \ Shank Protection)
Material 1# Hardness :48-52HRC Impact Value :>15J
Material 2# Hardness :48-52HRC Impact Value :>20J
OEM are acceptable


Caterpillar style ripper guard; takes 2 – 6Y3394 pins and 2 – 8E4743 retainers
Weight 52.56 lb / 23.84 kg


SPECIFICATIONS
Distance between retainer holes (in): 3.15
Retention (CapSure or Pin-On): Pin-On
Ripper Tip Size: 450
Shank Width (in): 2.95


COMPATIBLE MODELS
TRACK TYPE TRACTORS
D8N, D8RLRC, D8T, D8RII

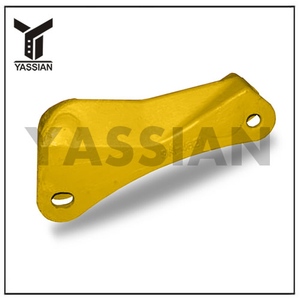

132-4716: SHANK PROTECTOR
Extended Shank Protector, 2-pin, 75mm


Description:
Shank Protection for D7, D8 an D9 dozers


Attributes:
Built tough, Cat® shank protectors shield the lower portion of the shank from wear and impact and work in tandem with Cat tips to provide a smooth transition and sharper leading edge for dependable results


Application:
• Certain wheel loader and excavator buckets
• Suitable for most soil conditions in average digging conditions


SIDEBARS AND SHEAR BLOCKS
Protect your bucket structural integrity and enhance penetration with Cat® Sidebars and Shear Blocks.
Cat Sidebar Protectors reduce wear on the sides of front-shovel and mass-excavation buckets in moderate to high wear-rate applications. These pin-on protectors can be easily rotated or replaced for maximum bucket side protection.
SIDEBAR PROTECTOR / Caterpillar Sidebar Protector
Protect sidebars from wear and damage
Pin-on for easy removal and installation
Can be stacked, one above the other on the side of the bucket, for more protection
Edge covers, sidebar protectors, tips, and adapters specifically designed by Caterpillar will aid penetration in a variety of ground breaking and construction applications.  caterpillar style protector 132-1015


Product Range

Imperial2

Metrics2
