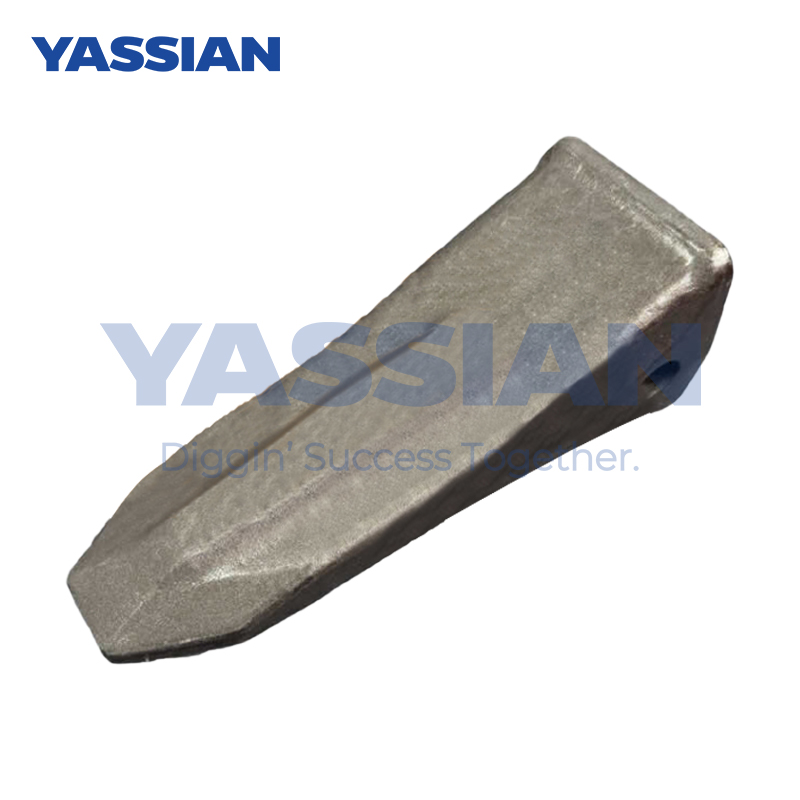

1U3452RC 9W8452RC Forged Caterpillar Teeth for J460 J450

Winter & Snow Applications: Choosing the Right Motor Grader Cutting Edge for Ice and Packed Snow

When winter arrives, graders face one of their toughest challenges — maintaining roads covered with ice, packed snow, and freezing slush. Choosing the right motor grader cutting edge isn’t just about durability; it’s about traction, surface safety, and efficiency under extreme conditions. The wrong blade can lead to uneven grading, excessive wear, and wasted fuel. In this guide, we’ll break down how to select the best cutting edge for winter and snow operations.

Understanding Winter Grading Challenges

Snow-covered roads behave very differently from dry gravel or asphalt. Ice layers are harder and more slippery, and packed snow can become as dense as compacted soil. To remove these layers effectively, a cutting edge must:

• Maintain sharp contact with the road surface

• Prevent edge lift due to hard ice resistance

• Withstand cold brittleness and impact fatigue

Standard carbon steel blades often fail quickly under these stresses, which is why choosing a winter-optimized edge is essential.

Types of Cutting Edges for Snow and Ice

1) Serrated Cutting Edges

Serrated (or scalloped) edges feature a saw-tooth design that bites into compacted snow and ice.

Advantages:

• Excellent penetration in frozen surfaces

• Prevents blade “skating” on ice

• Reduces need for multiple passes

• Best suited for hard-packed snow, frozen gravel roads, and icy intersections.

•


• 2) Curved Cutting Edges

•


• Curved grader blades provide a smoother rolling action for snow removal.

•


• Advantages:

• Better flow of snow off the moldboard

• Less resistance for fuel savings

• Compatible with carbide inserts for longer wear

These are ideal for municipal snow removal and general winter road maintenance.

3) Carbide Insert Cutting Edges

Carbide edges are the top choice for operators dealing with abrasive winter conditions.

Advantages:

• Extremely long lifespan — up to 4–6 times longer than standard steel

• Resistant to chipping and cracking at low temperatures

• Consistent performance across varying snow densities

• Recommended for heavy-duty highway snow clearing and extended winter operations.

•


• 4) Rubber or Polyurethane Cutting Edges

•


• Flexible edges like rubber or polyurethane are designed to protect delicate surfaces (e.g., airport runways or decorative pavements).

•


• Advantages:

• Prevent surface scratching

• Quieter operation

• Ideal for slush and light snow removal

•


• These are best used in urban or sensitive environments, not heavy ice removal.

•


• Selecting the Right Cutting Edge for Your Conditions

•


• Winter Surface Type	Recommended Cutting Edge Type	Key Benefit
  Packed snow / Ice	Serrated or Carbide Insert	Maximum penetration and traction
  Fresh snow / Slush	Curved or Rubber Edge	Smooth clearing and surface safety
  Mixed winter surfaces	Carbide Insert with Curved Edge	Balanced wear life and performance
  Delicate or paved areas	Polyurethane Edge	Surface protection

•


• Before installation, ensure:

• The edge matches your grader moldboard bolt pattern

• Cutting edge torque meets manufacturer specs

• Blade sections are evenly tightened to avoid uneven wear

• Maintenance Tips for Winter Cutting Edges

•


• Rotate or flip reversible edges regularly to extend lifespan

• Inspect after each storm for chipping or cracking

• Use correct storage — avoid moisture accumulation when idle

• Monitor edge angle — a 30° to 45° attack angle is generally optimal for snow clearing

•


• Preventive maintenance not only extends the life of your blades but also maintains efficient grading and operator safety.

•


• Why Work with a Professional Cutting Edge Manufacturer

•


• As an experienced motor grader cutting edge manufacturer, we understand how much performance depends on metallurgy, heat treatment, and precise edge geometry.

• Our winter-rated cutting edges are:

• Made from through-hardened boron steel or tungsten carbide-tipped materials

• Designed to perform in temperatures down to -40°C

• Custom-fitted for all major grader brands like CAT, John Deere, Komatsu, and Volvo

• Conclusion

•


• Choosing the right cutting edge for winter requires understanding your local conditions, machine type, and performance needs. Serrated and carbide insert blades are unbeatable for ice and hard-packed snow, while curved and rubber edges are better suited for lighter snow and paved surfaces.

•


• If you're looking to improve efficiency and blade life this winter, consult a professional manufacturer before the cold sets in.

•


• Contact us today to get a customized motor grader cutting edge solution for your snow and ice operations — built for performance, precision, and durability in every winter challenge.

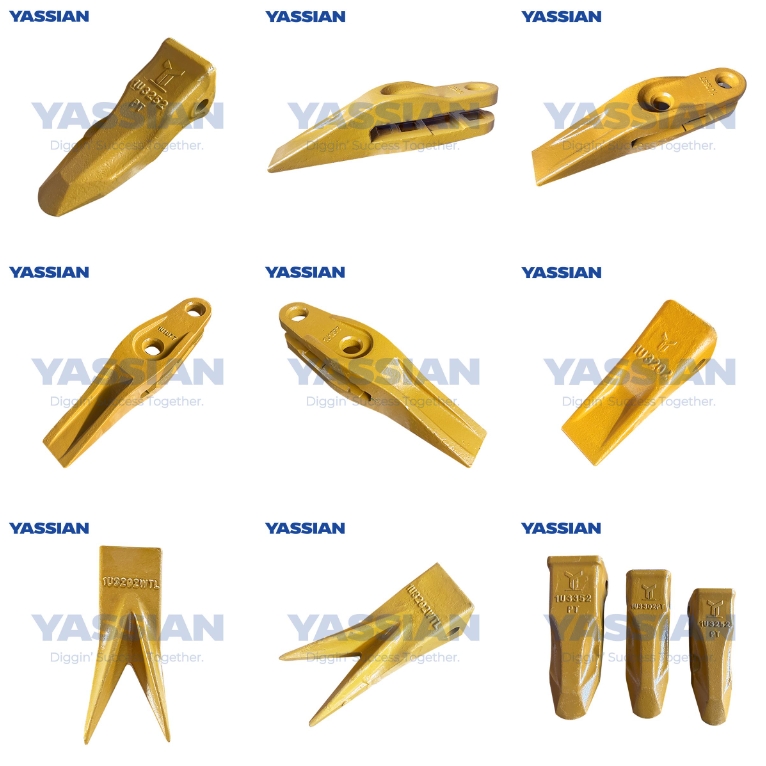

• Family	Part No.	Description
  J250	1U3252	bucket teeth
  	1U3251	bucket teeth
  	9N4252	bucket teeth
  	4T2253	bucket teeth
  	9N4253	bucket teeth
  	4T2253RP	bucket teeth
  	1U3252RC	bucket teeth
  	1U3252E	bucket teeth
  	1U3252R	bucket teeth
  	1U3252SYL	bucket teeth
  	1U3252PT	bucket teeth
  	1U3252WTL/135-8258	twin tiger bucket tooth
  	1U3252TL/9W8259	tiger bucket tooth
  	3G8250/2085254	bucket teeth
  	9J4254WN	weld on nose
  	6Y3254/1193253	weld on adapter
  	3G4258	corner adapter
  	3G4259	corner adapter
  	253-0060	corner guard
  	253-0061	corner guard
  	6I9250	corner adapter
  	6I9251	corner adapter
  	1U1254	Flush mount adapter
  	8J7525	Bottom strap adapter
  	1U0257	bolt on adapter
